Tokenization Allows Multimodal Large Language Models to Understand, Generate and Edit Architectural Floor Plans

Summary

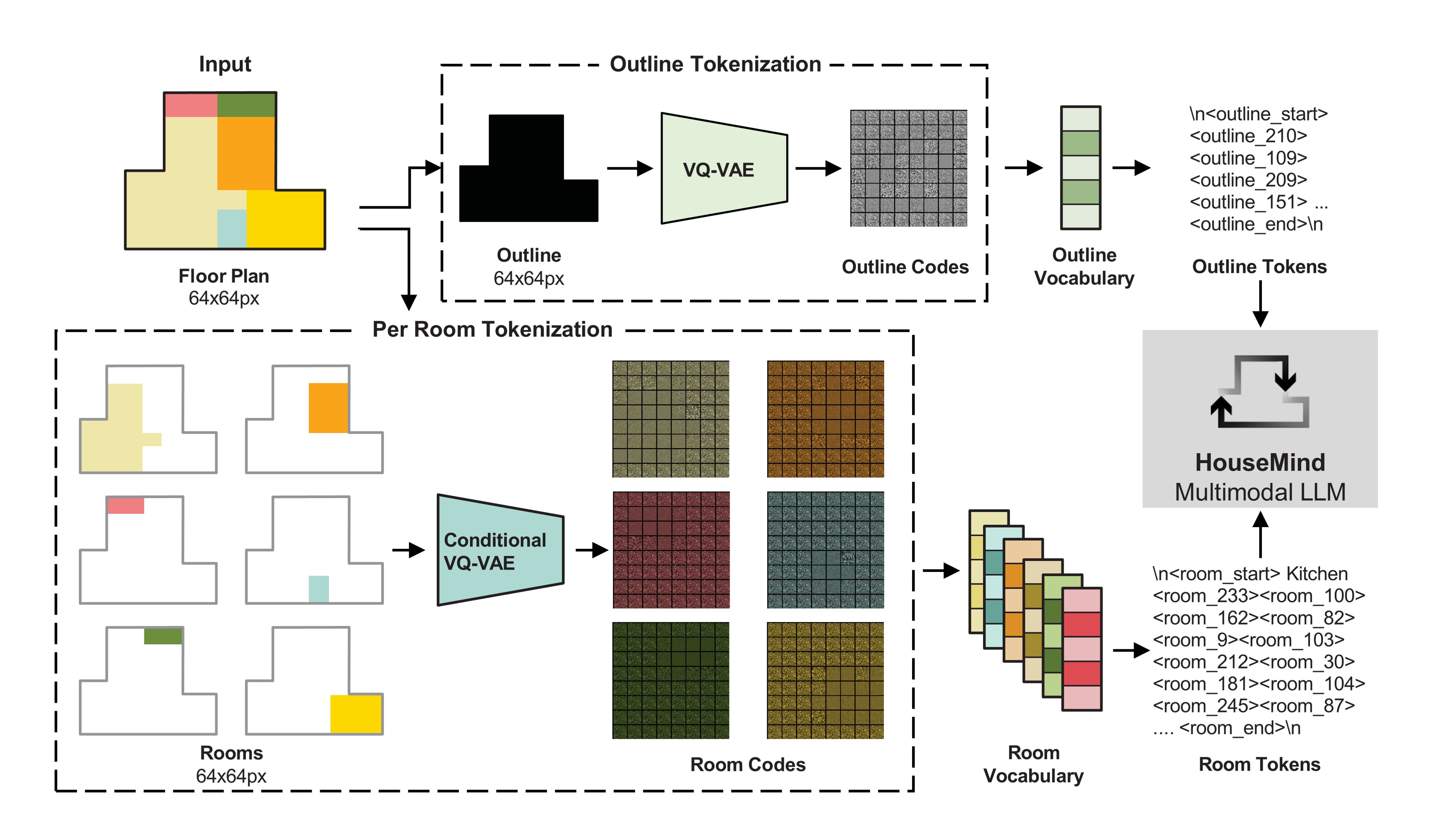

Architectural floor plan design demands joint reasoning over geometry, semantics, and spatial hierarchy, which remains a major challenge for current AI systems. HouseMind is a multimodal large language model that unifies floor plan understanding, generation, and editing in one framework. It introduces discrete room-instance tokens via VQ-VAE to bridge layout geometry and symbolic reasoning, enabling controllable and interpretable operations. Experiments show strong geometric validity and controllability while remaining efficient and locally deployable.

Citation

Qin, S.Z., Weber, R.E., Lu, X.Z., 2026. Tokenization Allows Multimodal Large Language Models to Understand, Generate and Edit Architectural Floor Plans. In: Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), pp. 10430–10440. https://arxiv.org/abs/2603.11640

BibTeX

@inproceedings{20260316HouseMind,
  title = {Tokenization Allows Multimodal Large Language Models to Understand, Generate and Edit Architectural Floor Plans},
  author = {Qin, Sizhong and Weber, Ramon Elias and Lu, Xinzheng},
  booktitle = {Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR)},
  year = {2026},
  pages = {10430--10440}
}
